AWR300 Stickreader

The new AWR300 represents the next generation of RFID stick readers and sets new standards in ergonomics, power and functionality. It combines great reading range with an outstanding long operation time, a large display and memory and many smart features.

The new large colour TFT − display shows much more information. It makes the operation easy and displays many information about the animal. In combination with the integrated loudspeaker, vibrator and programmable LEDs it offers various ways to indicate ID, additional information, preprogramed alarms and actions even in noisy environment.

The new robust IP 67 housing is more than 20% lighter and better balanced than any other stick reader. This keeps hands and arms relaxed at long-lasting workdays.

Unique is the variety of interfaces. The AWR300 offers USB, RS232 and Bluetooth Class1 as standard interfaces. An optional Wi-Fi version offers great advantages in combination with smart phones and at multi-device operations. The Wi-Fi version makes the connection of several AWR300 to one host easy. Data transfer from and to the AWR300 is very easy using the File transfer or virtual comport mode.

The AWR300 reads all types of HDX and FDX-B transponders, ear tags and bolus compatible to ISO standard 11784/5 with a great reading range without the need of changing batteries during the work. Due to a new reader technology, the battery lasts longer than of any other stick reader. Up to 30 hours in push to read mode and up to 12 hours in permanent read mode are possible. The large memory of 4 GB allows the storage of up to 1.000.000 records (ID, time-stamp and VID). The memory can be arranged in groups. The built-in real-time clock displays and records date and time.

The AWR300 is compatible to AWR200 and to APR500 including TASK and DATA BASE mode. Self-defined Tasks can be loaded and make frequent works convenient and quicker. The integrated DATA BASE function for up to 50.000 data sets arranged in several data bases offers offline data about the specific animal. The data can be changed and added from customized lists (e.g. Breeds or medicines). The AWR300 connects to major brands of scales via Bluetooth or RS232 and adds the weight into the database or task data.

In addition to the many new features, the AWR300 also offers the advantages of the long-time proven AWR100/200 as for example the outstanding reading range, the robust housing and an exchangeable battery. For convenient power management an external charger and a car adaptor are included.

Technical Data of the AWR300

Frequency134.2 kHz
Transponder typesHDX and FDX-B compliant according to ISO11784/11785, EM4002 optional
Read range30 cm with HDX transponders (30 mm Ø)
30 cm with FDX-B transponders (30 mm Ø)
SynchronizationWireless Synchronization allows the operation with other readers in close vicinity according to ISO24631-2
InterfacesUSB (Virtual Comport or Mass Storage)
RS232 (Baud rate configurable from 9.600 to 115.200),
Bluetooth 4.0 - Class 1, Wi-Fi optional
Android, Windows 10 and IOS Compatible
Power supply7.4 V Li-Ion battery with 2.600 mAh capacity,
Internal fast charger with external power
supply (Charge max. 3.5 h)
Memory4 GB Flash
Display2.4 inch TFT colour (65K colours)
Adjustable backlight
Keypad7 keys, directional pad with “OK” button in the middle and two additional soft keys below the display
Signals Top LEDs with 3 different colours (RGB), 2 Status LEDs above the display (one RGB and one blue), Audio Speaker, Vibration
Operating Temperature-20° to 60°C, -4° to 140° Fahrenheit
Storage Temperature-20° to 60°C, –4° to 140° Fahrenheit
Charging Temperature0° to 45°C, 32° to 113° Fahrenheit
Protection LevelIP67
DimensionsL x W x H: 650 x 85 x 42 mm
WeightApprox. 720 g

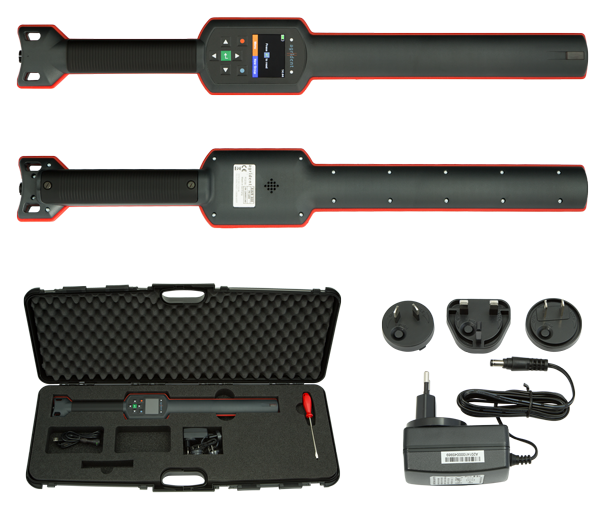

AWR300 PICTURE GALLERY

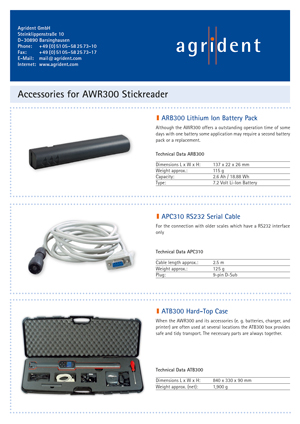

AWR300 PRODUCTSHEET AND ACCESSORIES

AWR300 Application video
