ACCESSORIES ABR200

EVK200 Evaluation Kit

For the evaluation of the ABR200 board and software development at a PC without integrating it into a handheld an EVK200 Evaluation kit is already available.

The Kit consists of an ABR200 board, a basic board with USB and power supply, a 100mm and a 75mm ferrite antenna with coil and also a PC-Demo-Software and SDK.

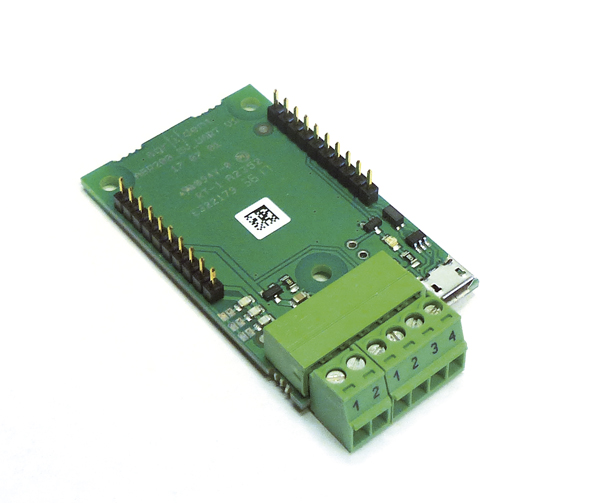

AAB300 Piggy Back Adaptor Board

Receptacle for USB Micro-B plug, Port for UART and +5VDC, Port
for 275 μH antenna coil.

Technical Data AAB300

Weight	approx. 22 g (including ABR200 and connectors)
Dimensions L x W x H	approx. 65 x 35 x 15 mm (including ABR200 and connectors)

ANT003 / ANT004 Ferrite Rod Antenna

Ferrite rod and antenna coil on bobbin, Antenna coil tunable to
275 μH inductance.

Technical Data ANT003 / Ø 8 x 100 mm

Dimensions L x d	approx. 100 x 13 mm (including coil on bobbin)
Weight	approx. 24 g

Technical Data ANT004 / Ø 8 x 75 mm

Dimensions L x d	approx. 75 x 13 mm (including coil on bobbin)
Weight	approx. 18 g
