ACCESSORIES APR500

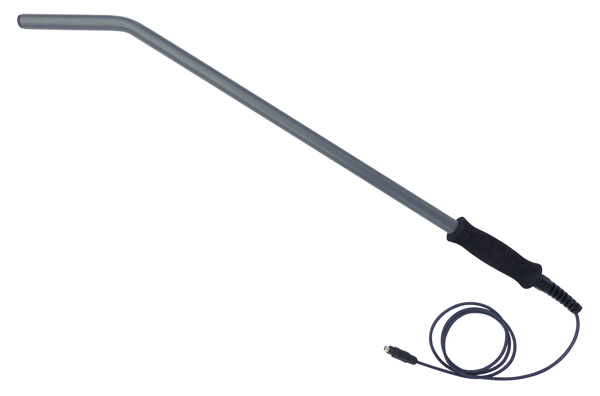

AEA580 External antenna

In combination with the external AEA580 stick antenna the operation of the APR500 readers becomes much more flexible in many applications. Whenever it is difficult to go close to the object to read or the tag is at a hidden location, e.g. at Bolus at sheep or at ear tags at pigs in pens the AEA580 makes the reading of the tags more convenient.

Technical Data AEA580 External antenna

Length0.80 m
Weight approx.500 g
Cable1.5 m with plug for APR500
AEA580 External antenna

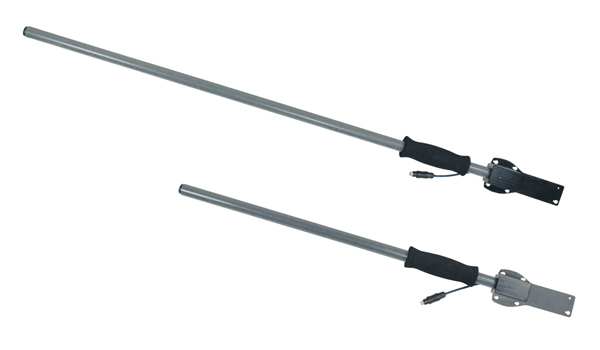

AMA060/090 Add-on antennas

The AMA060/090 add-on antennas can be fixed at the back of the APR500 and enhance the operation range of the APR500 readers and thus becomes much more flexible in many applications. With the AMA060/090 one hand operation is possible which makes data capturing with the APR500 more convenient.

Technical Data AMA060/090 Add-on antennas

AMA060

Length0.60 m
Weight approx.500 g

AMA090
Length0.90 m
Weight approx.600 g

AMA060/090 Add-on antennas

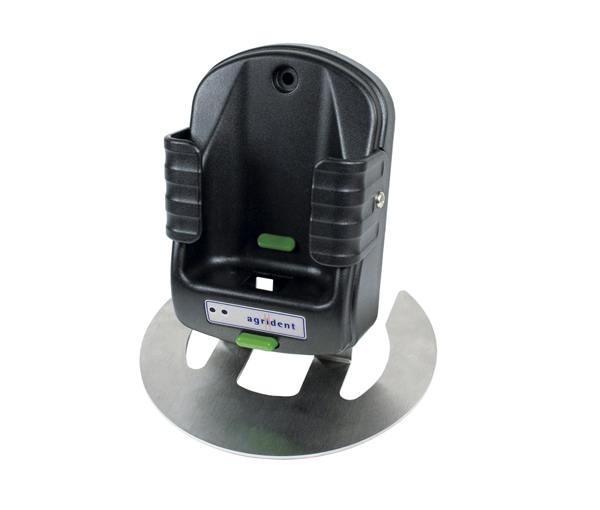

ADS500 Docking station

The ADS500 docking station for the APR500 reader makes data transmission and recharging more convenient. The USB connection of the ADS500 provides an easy connection to any computer system.

Technical Data ADS500 Docking station

Size160 x 140 x 150 mm
Weight approx.600 g
InterfaceUSB
Power supply110 to 230 Volt
ADS500 Docking station

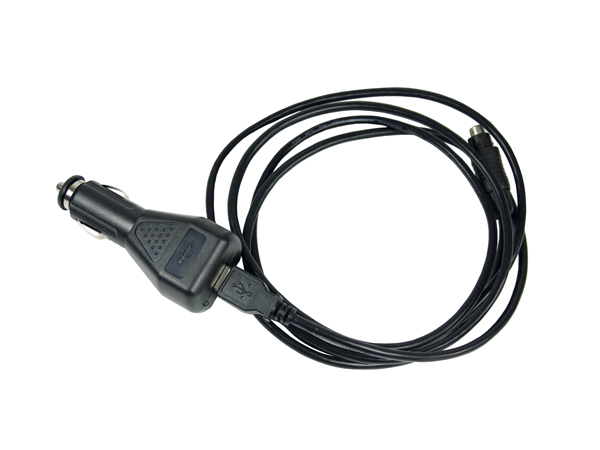

ACC500 Car adaptor

With the ACC500 car adaptor the APR500 can be recharged at a standard 12 to 24 Volt car socket. This gives more flexibility for mobile applications in the field. Receptacle for USB A plug.

Technical data ACC500 Car adaptor

Weight approx.80 g
Power supply12 to 24 Volt car socket.
ACC500 Car adaptor

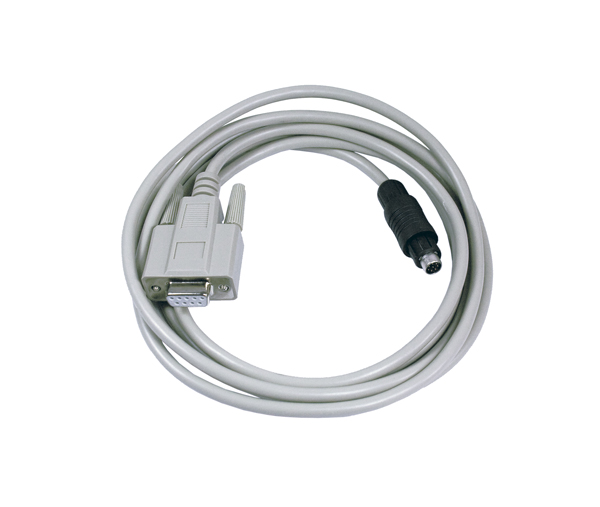

APC210 RS232 Cable

With the APC210 cable the APR500 can be connected with all equipment with RS232 interface e.g. with most common scales. This enables the APR500 to send the ID to or get weight data from many scales from the mayor brands.

Technical data APC210 RS232 Cable

Length2.5 meter
Weight approx.120 g
APC210 RS232 Cable
